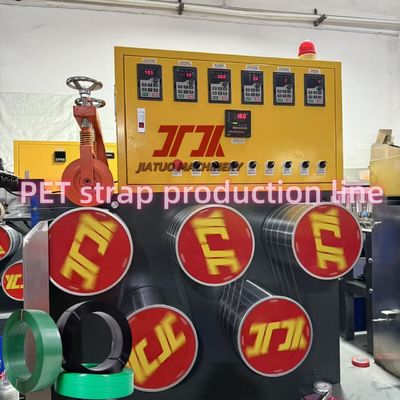

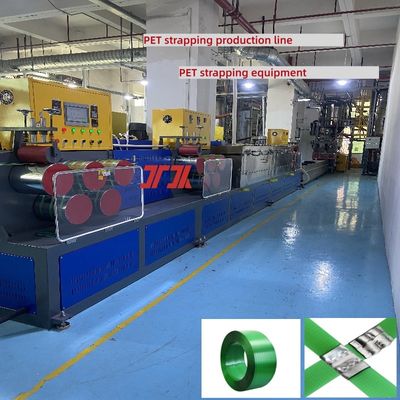

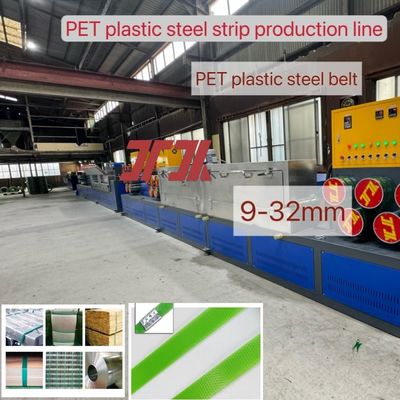

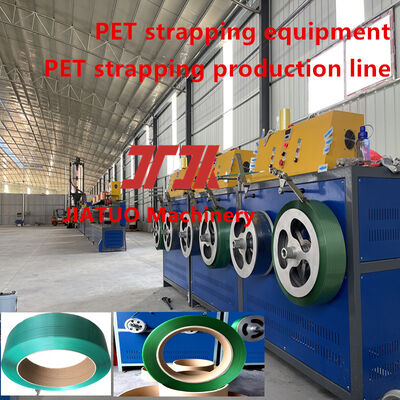

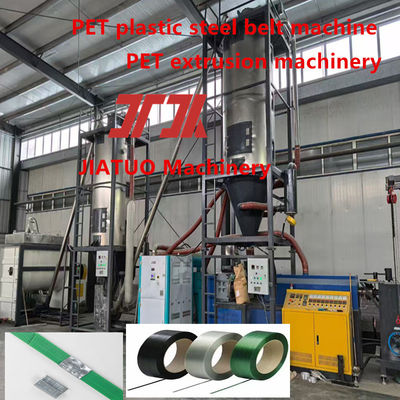

PET plastic strapping production equipment 9-25mm PET PET straps Making Machine with five-roller traction system
PRODUCT DESCRIPTION OF PET PLASTIC STRAPPING PRUDUCTION EQUIMENT:
PET plastic strapping (also known as PET strapping) production equipment is specialized for producing high-strength, environmentally friendly PET plastic strapping. Its key features include:
1. Efficient and Automated Production
Continuous Production------ PET equipment utilizes an integrated process for extrusion, cooling, stretching, shaping, and winding, resulting in a high degree of automation and high production efficiency, making it suitable for large-scale production.
Intelligent Control------- A PLC (Programmable Logic Controller) and touchscreen human-machine interface enable precise control of parameters (such as temperature, tension, and speed), minimizing manual intervention.
Quick Mold Change-------- Some equipment supports quick mold changes, enabling flexible production of plastic strapping in various widths (e.g., 9mm--25mm) and thicknesses. This is convenient and hassle-free.
EXTRUSION PARAMETERS TABLE
| Model |
PET-2 |
PET-3 |
PET-4 |
PET-6 |
PET-8 |
| Raw materials |
Bottle flakes/crushed materials |
| Number of tapes |
2 |
3 |
4 |
6 |
8 |
| Width (mm) |
9-32 |
| Thickness (mm) |
0.4-1.2 |
| Maximum line speed(m/min) |
≧150 |
≧150 |
≧150 |
≧150 |
≧150 |
| Screw Model |
90 |
100 |
125 |
150 |
180 |
| Reducer model |
200 |
250 |
280 |
315 |
350 |
| Dehumidifier |
1000 |
1000 |
2000 |
3000 |
3500 |
| Metering Pumps |
100CC |
| Production capacity /24 H |
5-6T |
7-8T |
10-12T |
12-15T |
18-20T |
Core Components of PET Plastic Steel Strip Equipment:
1. Five-Roller Stretching System
Stretching Unit: Equipped with 3-5 sets of traction rollers, utilising silicone or chrome-plated rollers to prevent strip scratching; adjustable stretching speed range of 5-20m/min accommodates production requirements for plastic steel strips of varying thicknesses (0.4-1.2mm).
2. Five-Roller Forming System
Temperature Control System: Utilises a PLC control system with touchscreen operation, achieving ±1℃ precision across the entire line. Real-time temperature curves for each section are displayed, with fault alarm functionality (e.g., temperature anomalies, motor overload) enabling prompt operator intervention.
Applications of finished PET plastic steel strapping:
1. Glass
2. Steel
3. Brickworks
4. Marble
5. Cotton
6. Aluminium and other materials.
FAQ
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic steel belt equipment?
A: 9-32mm
Q: Can the PET plastic steel belt equipment be customized?
A: Customization supported
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for the PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
