Extruder 9-25mm PET plastic steel belt equipment PET plastic steel belt production line with 100% PET crushed material
Product Description of PET Strap Making Machine

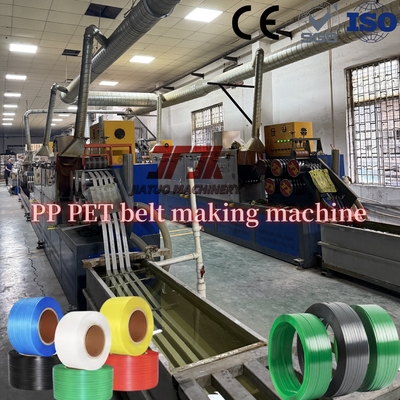

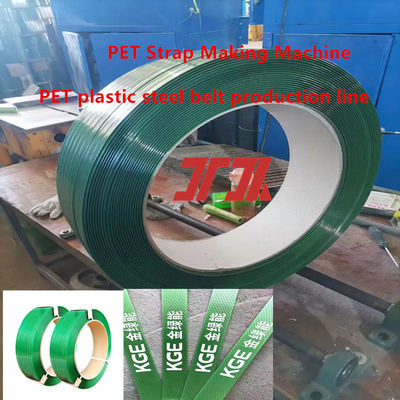

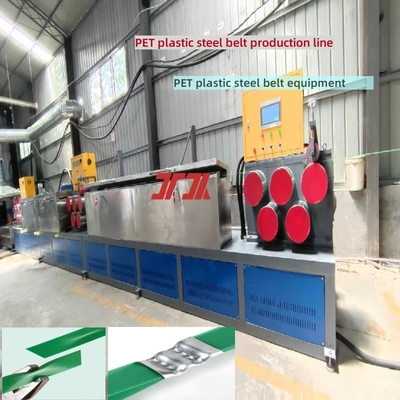

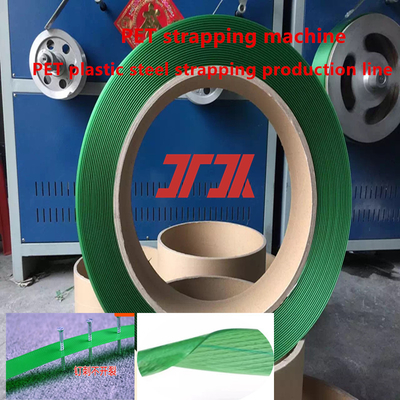

PET Strap Making Machine
PET Strap Making Machine is a high-quality and efficient machine used for producing PET straps for packaging purposes. It is designed to use 100% broken PET bottle flake material, making it an environmentally friendly and cost-effective option.
Features :
1. Good tensile strength----PET strapping tape production line has the tensile strength of steel tape, good ductility, good impact resistance, not easy to break, and ensures the safety of product transportation.
2. Small elongation----Although PET strapping tape is a kind of plastic, its elongation changes very little, and its elongation is only 1/6 of polypropylene. It can maintain tension and make the expansion and contraction amount no longer change after packaging.
3. Strong temperature resistance----Experiments have proved that the melting point of PET strapping tape is about 260℃, and it can be used for a long time at 120℃ without deformation, and has good stability.
4. Good economic benefits----The density of PET strapping tape is 1.30~1.38g/cm3, which is only 1/6 of the density of steel tape (7.8g/cm3), equivalent to the length of 6-ton steel tape, and the price per unit length is relatively low.
Features :
- Product Name: PET Plastic Steel Belt Production Equipment
- Solid-state relay: Taiwan Yangming
- Power: 45KW
- Switchgear: Schneider
- Paper tube size: GUOMAO
- Cylinder: Double or single
- Material: 100% recycled bottle flakes&100% broken material
- PET plastic strip equipment
- PET plastic tape equipment
- PET packing tape production line
- PET plastic steel belt machinery
- PET belt making machinery
EXTRUSION PARAMETERS TABLE
| Model |
PET-2 |
PET-3 |
PET-4 |
PET-6 |
PET-8 |
| Raw materials |
100% PET Bottle flakes/crushed materials |
| Number of tapes |
2 |
3 |
4 |
6 |
8 |
| Width (mm) |
9-32 |
| Thickness (mm) |
0.4-1.2 |
| Maximum line speed(m/min) |
≧150 |
≧150 |
≧150 |
≧150 |
≧150 |
| Screw Model |
90 |
100 |
125 |
150 |
180 |
| Reducer model |
200 |
250 |
280 |
315 |
350 |
| Dehumidifier |
1000 |
1000 |
2000 |
3000 |
3500 |
| Metering Pumps |
100CC |
| Production capacity /24 H |
5-6T |
7-8T |
10-12T |
12-15T |
18-20T |
Why do we need to add PET toughening agent to PET plastic steel belt? What is the role of toughening agent?
THE MAIN FOLE OF PET TOUGHENING AGENT:
Improve impact resistance------By increasing the toughness of PET, it reduces its brittle fracture when impacted.
Improve processing performance------Reducing processing temperature, reducing energy consumption, and improving fluidity to make processing smoother.
Enhance flexibility-------Make PET material softer and suitable for application scenarios that require flexibility.
Improve heat resistance-------Some toughening agents can improve the heat resistance of PET, allowing it to maintain stable performance at high temperatures.
FAQ:
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic steel belt equipment?
A: 9-32mm
Q: Can the PET plastic steel belt equipment be customized?
A: Customization supported
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for the PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
